12米铝制领航船（多用途重型高速规划船）

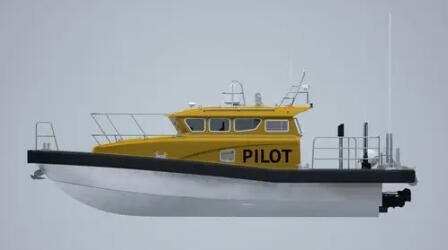

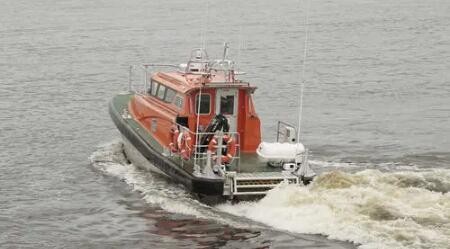

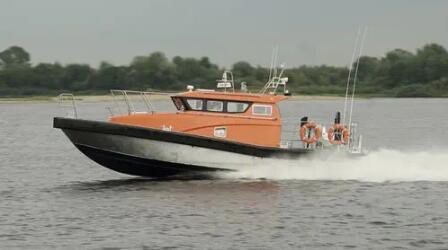

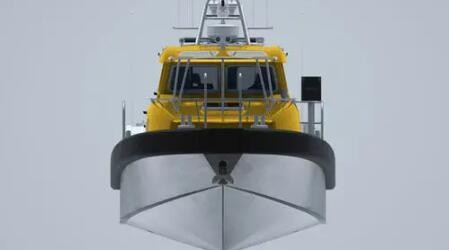

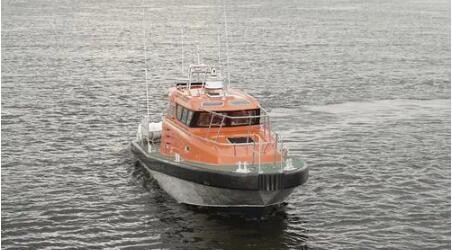

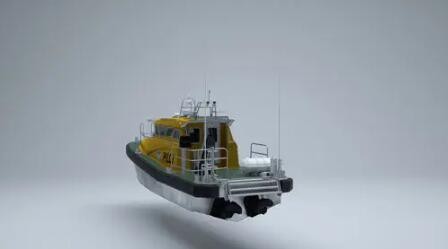

产品图片
 |
 |
 |
 |
 |
 |
 |
 |
重要参数
| 类型 | 领航船 |
| 发动机类型 | 舷内 |
| 材料 | 铝制 |
| 长度 | 11.99 m(39'04" ) |
| 最大宽度 | 3.6 m(11'09" ) |
| 吃水深度 | 0.7 m(2'03" ) |
| 发动机功率 | 960 ch(960 hp) |
| 巡航速度 | 最多: 43 kt最少: 34 kt |
| 乘客人数 | 12 unit |
| 燃料容量 | 1,600 l(423 gal) |
产品简介S-Ribs定制造船公司已经完成了 "SWR-120 "项目的第一艘船的试验，很高兴有机会向全世界提供这一产品。SWR-120是一艘12米的多用途、重型、高速规划船，可在沿海海区、公海作为子母船以及几乎任何气候区的湖泊和河流中作业。 根据所安装的设备，该船可以定制为搜救、巡逻、工作、领航、船员、潜水支持、水文测量或女儿船。它的所有结构、系统和设备都是为商业用途从零开始设计的，可以经受数千小时的重负荷、低成本的运行。SWR-120 "的上层建筑是由轻量级的复合材料夹层和碳纤维加固制成。船体是由海洋级铝合金建造的，它是一个规划/深V型船体，具有良好的穿波能力，而它的棱形为工作目的和在甲板上移动货物提供了额外的稳定性。 该船的设计是自动扶正，这意味着在翻船的情况下，它可以恢复到直立的位置。 该船的结构和系统设计符合ISO小型船只认证（CE A类）和大多数常见船级社的HSC等级规则。 第一艘建造的船（最近进行了测试）是作为一个定制的多用途船被订购的，用于执行海上搜救、船员培训、工作、潜水支持和环境保护行动。同时还订购了A2区的GMDSS设备，使该船可以在离海岸200海里的地方提供服务。其简要规格如下。 英文介绍S-Ribs Custom Boatbuilding Company has finished the trials of the first boat of "SWR-120" project and is glad to have an opportunity to offer this product worldwide.SWR-120 is a 12m multi-purpose, heavy-duty, high-speed planning boat for operation in costal sea areas, in open sea as a daughtercraft and in lakes and rivers in almost any climate zone. Depending on the equipment installed, the boat can be customized as Search and Rescue, Patrol, Work, Pilot, Crewtender, Diving support, Hydrographic survey or a Daughter craft. It is designed for commercial use from scratch with all its structures, systems and equipment to stand thousands of hours of heavy-duty, cost-effective operation. The superstructure of "SWR-120" is made of a light-weight composite sandwich with carbon reinforcements. The hull is constructed of marine grade aluminum alloys, which is a planning/deep V hull with an excellent wave-piercing capabilities, while its prismatic shape provides an additional stability for the work purposes and moving the cargo around the deck. The boat is designed self-righting, what means that in case of a capsize, it returns to the upright position. Structures and systems of the boat are designed to meet ISO Small Craft certification (CE A Category) and HSC class Rules of most of the common Classification Societies. The first boat built (and recently tested) was ordered as a custom multi-purpose vessel, to perform the SAR, Crewtender, Work, Diving support and Environmental protection operations on the sea. GMDSS equipment for zone A2 was ordered as well, to let the boat serve up to 200 nm far away from the shore. Its brief specifications are given below. |
