产品简介

描述

SOUNDK® 是一种层压式声学面板，它比常用材料（如胶合板或复合材料面板）提供更高的降噪效果。 有两层海洋胶合板 (一般使用 okoume 层) 层压受限声学层的每一侧 (Soundeck 重质量核心, ACM17 和 ACM 15). SOUNDK® 重质量核心材料不含沥青且无毒。 ACM17 和 ACM15 橡胶软木芯材由阿莫林软木复合材料生产。 SOUNDECK® 作为一个平衡的受限层，显著减少了通过甲板、舱壁、地板和隔板传输的噪音，同时增加了客舱之间的隐私。 应用

程序

工业

压缩机室，配有空调装置和电梯电机的泵房，噪音是用于隔音的所有领域的常见问题，并获得出色的声学效率。

建筑物楼层之间的噪音传输可以作为地板板使用，以提供房间之间的隔音作为墙板。 或者，一侧的石膏板，使 MGO 面板 betopanel 也产生并且更容易使用。

轨道

车辆列车，轻轨，电车和地铁车辆用作基地板木材。 轨道和振动引起的噪音不允许车辆进入。

游艇和船舶和船舶在发动

机房的地板和墙壁周围的浮动地板用于隔音。 此外，还提供客舱隔间的跨部门隔音材料。 出色的声学和噪音抑制功能和海上车辆，以提高他们的舒适性。

英文介绍

DESCRIPTION

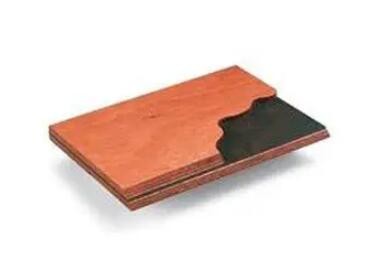

SOUNDECK® is a laminated acoustic panel, which provides higher noise reduction than commonly used materials such as plywood or composite panels. With two layers marine plywood(generally use okoume ply) laminated each side of a constrained acoustic layers (Soundeck Heavy Mass Core ,ACM17 and ACM 15). SOUNDECK® heavy mass core material is bitumen free and non toxic. ACM17 and ACM15 rubbercork core materials are produced by AMORIM Cork Composites. SOUNDECK® behaves as a balanced constrained layer, significantly reducing noise transmission through decks, bulkheads, floors and partitions, while increasing guest privacy between cabins.

APPLICATION

Industrial

Compressor rooms, pump-rooms with air conditioning units and elevator motors, the noise is a common problem in all areas used for sound insulation and excellent acoustic efficiency is obtained.

Buildings

Noise transmission between floors in the building can be used as the floor panel to provide sound insulation between rooms used as the wall panel. Optionally, a side of the plasterboard panels, so that MgO panel betopanel also produced and is easier to use.

Railcars

Trains, light rail, tram and subway cars used as the base floor wood. Rails and vibration-induced noise does not allow the vehicle to pass into.

Yachts and Boats & Watercraft

Floating floor around the floor and walls of the engine room is used for noise isolating. In addition, using the inter-departmental sound insulation in the cabin compartment is provided. Excellent acoustics and noise suppression feature and sea vehicles in order to increase their comfort.
