产品简介

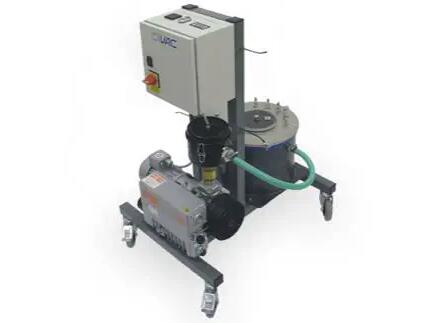

带树脂陷阱的真空输液站

一个移动式真空站，包括一个 30L 真空树脂陷阱，专门针对 “树脂输液” 工艺配置。 单级，风冷，充油旋转叶片真空泵系统，具有以下特点：

充油真空泵

真空水平低至 0.2 毫巴绝对

油雾分离器，带排气过滤器，除雾器和机油滤

清器，带纸元件，出口连接 真空捕锅。

钢制真空吸盘 375 毫米 ID x 275mm 高

适合与 10 升塑料桶一起使用

铝制盖带真空密封和透明窗口插入

DOL 启动/停止带电机过载保护

装置安装在带 2 个旋转/停止脚轮和 2 个固定脚轮的紧凑基架上 脚轮

英文介绍

Vacuum Infusion Station with Resin Trap

A mobile vacuum station including a 30L vacuum resin-trap- configured specifically for ‘resin infusion’ processes. Single stage, air cooled, oil filled rotary vane vacuum pump system, with the following:

Oil filled vacuum pump

Vacuum levels down to 0.2 mbar absolute

Oil mist separator with air exhaust filters, demisters and oil filter

Inlet filter with paper element fitted, outlet connected to vacuum catch-pot.

Fabricated steel vacuum catch-pot 375mm ID x 275mm High

Suitable for use with 10 litre plastic buckets

Aluminium lid with vacuum seal and clear window insert

DOL start/stop with motor overload protection

Mounted onto compact base frame with 2 x swivel/stop castors and 2 x fixed castors
