产品简介

用于半自动和全自动铺展折叠或卷曲管状织物的专用铺展机，配有扩幅装置，也可选配折痕更换装置。

结构紧凑的库瑞斯 A16 型管状织物铺布机是用于半自动和全自动铺展管状织物的专用系统。通过触摸屏概念设计的用户界面易于操作。由于采用了可编程的多级驱动曲线，该系统具有最佳的动态驱动特性。低矮的结构在铺布过程中为客户提供了宽阔的视野。包括特殊压光辊在内的管状铺纸装置可单独调节两侧的接触压力 - 通过偏心曲柄打开辊子间隙。高级微处理器通过受控齿轮调节织物预喂入和行走驱动之间的精确同步。集成变频器可确保精确无皱的铺展。通过穿线辅助装置，织物可以顺利穿线。集成的电动集料提升装置可使铺布高度达到 230 毫米。

优势一览

大、低、易于接近的折叠织物平台，900 毫米深度

可调节织物导流板和扩张器，用于铺放或折叠材料

抗扭轻型底盘

全轮驱动，带 PUR 滚轮

通过触摸屏/视窗操作

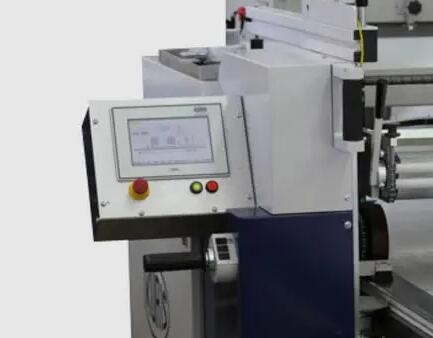

易于操作的穿线辅助装置

用于调速的旋转手柄

带安全停止装置的操作员行走平台

选项

带支撑架或座椅的操作员移动平台

用于卷筒织物的展开装置

英文介绍

Special spreading machine for semi and fully automatic spreading of folded or rolled tubular fabric equipped with expanders and as option with crease changing device.

The compact KURIS tubular spreading machine A16 is a special system for semi and fully automatic spreading of tubular fabric. The user interface via touch-screen concept is easily operable. Thanks to a programmable, multi-stage driving profile the system is featuring optimal dynamic driving characteristics. The low construction offers the customer a wide view field during the spreading process. The tubular spreading device including special calender rolls has a separate adjustment possibility for the contact pressure on both sides – the roll gap is opened via an eccentric crank. The higher-level micro processor regulates via the controlled gears a precise synchronisation between the fabric pre-feeding and travel drive. The integrated frequency transformers secure an exact and wrinkle free spreading. With the threading aid the fabric can be thread without problems. The motorised aggregate lift is integrated to achieve spreading heights up to 230 mm.

ADVANTAGES AT A GLANCE:

Big, low and easily accessible platform for folded fabric, 900 mm depth

The fabric-deflector and the expanders for r olled or folded material are adjustable

Torsion-resistant light chassis

All-wheel-drive with PUR-rollers

Operation via touch-screen / Windows basis

Easily operable threading aid

Rotary handle for speed regulation

Operator’s travel-on platform with safety stop

OPTIONS:

Operator’s travel-on platform alternatively with support bracket or seat

Unrolling device for rolled tubular fabric
