游艇用碳纤维遮阳棚支撑杆

水上物流产品分类

游艇用碳纤维遮阳棚支撑杆

产品图片

重要参数

应用领域	用于游艇
材料	碳纤

产品简介

用于船只、帆船和机动游艇的遮阳篷系统配有碳纤维杆和自动关闭插座底座

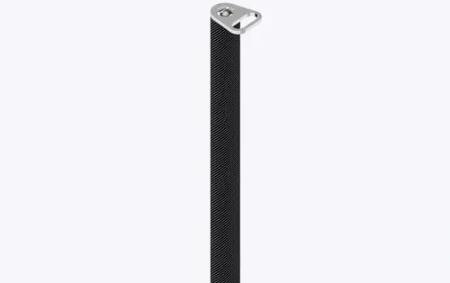

用于遮阳篷的碳纤维杆：碳纤维表面涂有透明亮光漆，有多种标准高度可供选择：从 H=1300mm 到 H=1800mm；其他尺寸可根据要求提供。杆的直径为 38 毫米，倾斜度为 0° 至 5°。
Bimini 固定系统：该型号有一个优雅的 316L 不锈钢顶环，用于固定遮阳篷带。
甲板固定系统：杆子上有一个释放按钮，可将其从底座上卸下，并有三个锁定位置，上面刻有挂锁标志。

316L 镜面抛光不锈钢快锁底座插座可与甲板齐平安装，并有一个自动升起的盖子：当杆子停靠时，盖子会缩进插座中，无需取下；当杆子松开时，盖子会自动回到原位。这种底座有明显的固定螺钉；在维护时，必须拆下整个底座。
底座下部有排水连接或完全密封两种选择。
专利系统
购买 2 台时附带软垫储物袋 #1890
供货时间20 天

英文简介

Sun awning system to be used on boats, sailing and motor yachts features a carbon fibre pole and a self closing socket base

Carbon fibre pole for awning: the carbon fibre is coated with a transparent glossy paint and is available in various standard heights: from H=1300mm to H=1800mm; extra sizes on request. The pole is available in Ø38 and its inclination is a choice of 0° to 5°.
Bimini fastening system: this version has an elegant 316L stainless steel top loop for attaching the awning strap.
Deck fastening system: the pole has a release button to remove it from the base and allows three locking positions where the padlock symbol is engraved.

The 316L mirror polished stainless steel fast lock base socket can be installed flush to the deck and has a self-rising lid: when the pole is docked, the lid retracts into the socket with no need to be removed; when the pole is released, the lid returns automatically to its position. This base model has visible fixing screws; in case of maintenance, the entire base must be removed.
The lower part of the base is available with drain connection or fully sealed.
Patented system
Padded storage bag #1890 included with a purchase of 2
Available in: 20 days
