水上物流产品分类

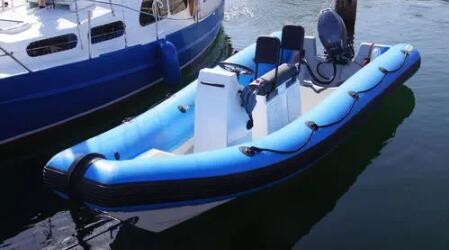

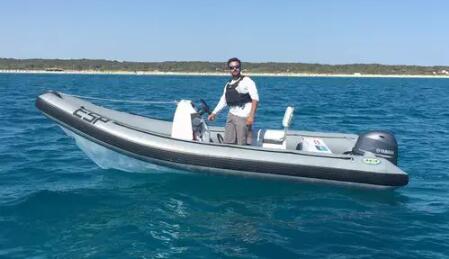

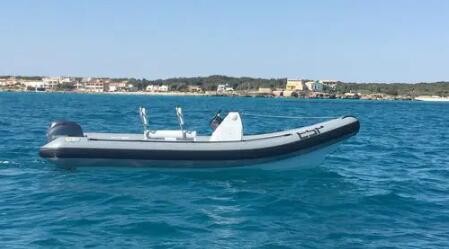

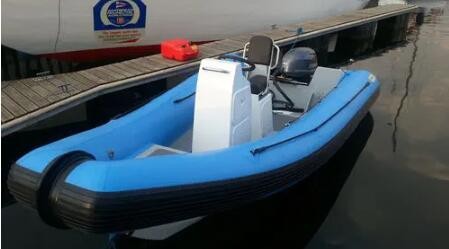

中央控制台的半硬式汽艇(开放式休闲充气艇)
产品图片
重要参数
    发动机类型 舷外
    船体类型 半硬式
    甲板布局 中央控制台, 开放式
    人数 最多容纳 6 人, 最多容纳 8 人,
    最多容纳 10 人, 最多容纳 9 人
    甲板布置 日光浴, 保护栏杆
    长度 最多: 6.3 m(20'08" )
    最少: 4.8 m(15'08" )
    宽度 2.35 m, 2.36 m(7'08" , 7'08" )
    发动机功率 60 ch, 70 ch, 110 ch, 135 ch
    (60 hp, 70 hp, 110 hp, 135 hp)
    燃料容量 75 l, 120 l(20 gal, 32 gal)

产品简介

- 深 "V "型GRP船体设计,强度高,耐用。标准颜色 - 白色
带设备的GRP操舵台*。
- 防滑,自流式甲板
- 双人骑师座椅,黑色内饰
- 带舱口的船首储物柜+一对船首吊绳
- 钢制甲板排水系统,带套筒,末端为带夹钩的绳子
- 排水系统**
- 重型不锈钢船首护栏加固,带船首锚眼
- 安装在横梁上的不锈钢拖曳眼
- 甲板下的隧道,用于捆绑电缆
- Pennel的Hypalon管,ORCA 828织物(1100dtex,1300g/m2)。
- 管子颜色可选择阿尔卑斯蓝、海王星灰
- 莱菲尔德的充气和过气阀
- 外翼子板保护性橡胶带(黑色),双层
- 救生绳位于管子顶部的中心位置
- 发动机板
- 脚泵和管子修理包
- 船体和管子的2年标准保修

*操纵台蕊和2人座椅,带2个靠背,软垫+旗子把手。
控制台包含:通风格栅,小舱门或储物柜,带可拆卸前盖的大舱门,钢制安全把手,电池的安装系统,一个大的矩形舱门或两个带可拆卸前盖的大舱门在座位上,舱底泵开关,主电源开关
** 舱底系统包括。
- 舱门关闭,带可拆卸盖子,配备1个分离器+钢制通道,带电缆的波纹管
- 自动舱底泵,带穿过横梁的钢制通道+系统盖,舱底内塞。

- 钢制油箱,容量因RIB型号而异
- 带垫圈的修改板,上面有:燃油阀、燃油消耗量、通风口、软管、油位表
- 附件:带水分离器的燃油过滤器,钢制角形空气排放器,燃油泵(梨)。

英文介绍

– Deep „V” GRP hull design , high strenght, durable. Standard color – White
GRP steering console with equipment*
– Anti slip, self-outflowing deck
– Two persons jockey seat, upholstery color black
– Bow locker with hatch + pair of bow slings
– Steel deck drainage with sleeve ending with rope with clip hook
– Bilge system**
– Heavy duty stainless steel bow strake reinforcement with bow anchor eye
– Stainless steel transom mounted towing eyes
– Under deck tunnel for bundle of cables
– Hypalon tubes by Pennel, ORCA 828 fabric (1100 dtex, 1300 g/m2)
– Tube colour available Alpin Blue, Neptune Grey
– Inflating and overdose valves by Leafield
– Outer fender protective rubber strake (black) double
– Lifelines located in the center on top of the tubes
– Engine plate
– Footpump and tube repair kit
– 2 year standard warranty for hull and tubes

*Steering console pistil and 2-person seat with 2 backrests, upholstery+ flag handle.
Console contains: ventilation grille, small hatch or locker, big hatch with removable front lid, steel security handle, mounting system for battery, one large rectangle hatch or two big hatches with removable front lid in seat, bilge pump switch, main power switch
** Bilge system includes:
– Bilge bowl closed with hatch with removable lid equipped with 1 separator + steel passage with bellows for cables
– automatic bilge pump with steel passage through transom + system cover, inside bilge plug.

– fuel tank steel , capacity different for RIB models
– revision plate with gasket, on it: fuel valve, fuel consumption, vent, hose, fuel level gauge
– accessory: fuel filter with water separator, steel angular air-escape , fuel pump (pear)
