高质量重型侧卸车（侧移式升降机）

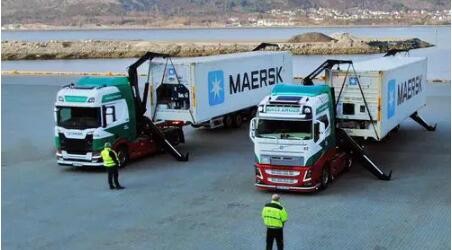

产品图片
 |
 |
 |
 |
重要参数
| 用途 | 公路, 搬运, 容器 |
| 应用 | 用于港口码头 |
| 其他特性 | 侧边装载, 自动充电器 |
| 有效载荷 | 36 t (39.68 us ton) |
产品简介Hammar 160是一个经过验证的侧卸货机模型，设计时考虑到了简单性和可靠性。它的起重能力为36吨，可以轻松处理满载的集装箱。它是市场上任何起重能力超过30吨的侧移机型号中皮重最低的，从20'-40'容量和3轴的7.1吨开始。 支撑腿以固定的弧线移动，可以放置在两个位置：在地面上或在同伴的底盘或铁路货车的顶部。当你想最大限度地提高你的有效载荷时，Hammar 160是最佳选择。它在提升到/离开地面方面非常出色，在转移到/离开一些配套的底盘时也很好用。 Hammar 160侧移式升降机 起重地面3 从/到地面的提升 Hammar 160在将集装箱吊到/吊离地面方面是快速、简单和安全的。一个完整的搬运周期只需要3-4分钟。 Hammar 160侧移器的转移 从/到另一个底盘的转移 Hammar 160可以转入/转出一些其他类型的底盘。支撑腿都放在同伴的底盘上，或将一个支撑腿放在它的后面或前面。 Hammar 160可以配备30吨的堆放能力，能够堆放两个8英尺6英寸的集装箱。两个额外的支撑腿被安装在非升降侧，以保证安全和额外的稳定性。 Hammar 160是世界上最轻的重型侧卸车，提供更低的排放，更少的磨损和最大的道路有效载荷。 当购买哈马尔侧卸车时，你总是得到一个高质量的哈马尔设计的底盘，为侧卸车操作而优化和制造。我们有许多型号可以满足客户的要求，然后再根据当地的法规和客户的需求进行调整。 英文介绍The Hammar 160 is a proven sidelifter model, designed with simplicity and reliability in mind. With 36 tonnes lifting capacity it can easily handle fully loaded containers.It has the lowest tare weight on the market for any sidelifter model with a lifting capacity over 30 tonnes, from 7.1 tonnes with 20’-40’ capacity and 3 axles. The support legs move in a fixed arc and can be placed in two positions: on ground level or on top of a companion chassis or railroad wagon. The Hammar 160 is the best choice when you want to maximize your payload. It is excellent at lifting to/from the ground, and works well when transferring to/from some companion chassis. Hammar 160 sidelifter Lifting Ground 3 Lifting from/to ground The Hammar 160 is fast, easy and safe for lifting containers to/from ground level. A full handling cycle only takes 3-4 minutes. Hammar 160 sidelifter transfer Transfer from/to another chassis Hammar 160 can transfer to/from a number of other chassis types. The support legs are both placed onto the companion chassis or with one support leg behind or in front of it. Hammar 160 can be equipped with 30 tonnes stacking capacity, enabling stacking of two 8’6” containers. Two extra support legs are mounted on the non-lifting side for safety and extra stability. The Hammar 160 is the lightest heavy duty sidelifter in the world, providing lower emissions, less wear and maximum payload on the road. When buying a Hammar Sideloader you always get a high quality Hammar designed chassis, optimized and made for Sideloader operations. We have a number of models to fulfil our customers’ requirements, which are then adapted to suit local regulations and the customer’s needs |
