水上物流产品分类
传统型3舱甲板会客区铝制巡游帆船游艇(全景甲板沙龙双桅纵帆)

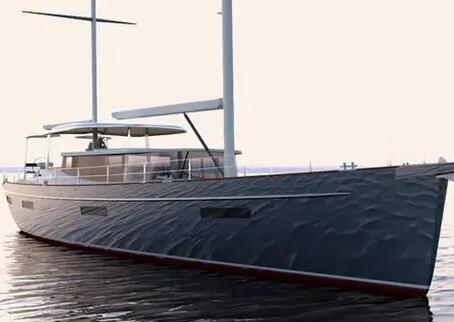

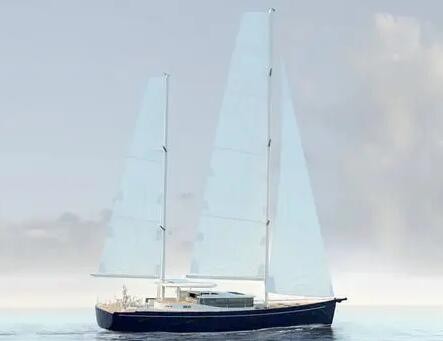

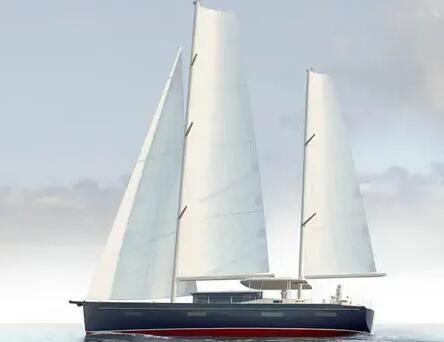

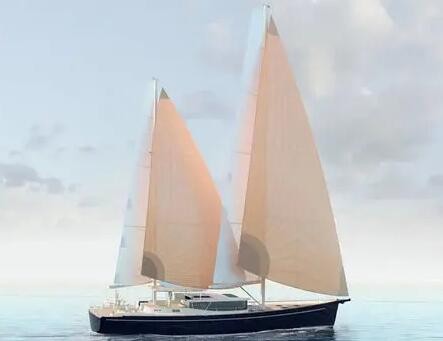

产品图片

重要参数
    用途 巡游, 包船租赁, 传统型
    船舱数量 3舱
    床位数量 6铺位
    甲板布局 甲板会客区
    材料 铝制
    帆缆索具 补助帆桁, 双桅纵帆
    全部长度 23.95 m (78'06")
    吃水深度 2.5 m (8'02")
    位置 55,000 kg (121,254.24 lb)
    帆面 247 m² (2,659 ft²)
    发动机功率 300 ch (300 hp)
    燃料容量 2,000 l (528 gal)
    淡水容量 2,000 l (528 gal)

产品简介

ZEFIR-76是现代经典游艇,适合家庭舒适地巡航,在淡季时有可能被租赁。 全景甲板沙龙和硬比米尼保护的驾驶舱使航行安全和愉快。该游艇拥有高品质的新古典主义内饰和完整的现代设备规格。 这艘游艇可容纳一个主舱和两个客舱,共6人。船员包括船长、副船长、女乘务员和兼职厨师,他们分别住在船尾的两个船舱。

现代化和简单的B&R索具类型允许拥有大的帆面积,并在轻度和中度的风中获得良好的性能。强大的铝制船体与完全保护的船舵和螺旋桨,适度的吃水和大体积的油箱,使这艘游艇成为真正的长距离舒适巡航船。一般的航行区域是夏季的地中海或冬季的加勒比海地区,但也可以根据需要访问遥远的地方。

这艘游艇的概念是由亚历山大-莫罗佐夫提出的,海军建筑和工程由奥利维尔-范米尔设计,游艇的建造者是360a3 Yachts S.L。

该项目正在进行中,请查看我们的新闻以了解最新情况,并在新闻或联系页面订阅我们的通讯。

特点

全封闭的驾驶室甲板沙龙,适合全天候航行和内部操控

带有硬顶比米尼顶的保护性驾驶舱

专业的铝制船体和甲板,高质量的涂装

全船舵和螺旋桨保护

内置龙骨箱,内有铅质压舱物

B&R索具,可两次增加顺风帆面积

可靠和经济的现代发动机,带双遥控器

英文介绍

ZEFIR-76 is modern classic yacht for family cruising in comfort with charter potential in the offseason. The panoramic deck saloon and hard bimini protected cockpit make the voyaging safe an enjoyable. The yacht has the high quality neo-classic interior and full specification of modern equipment. The quests will accommodate in one master cabin and 2 guest cabins, total of 6 persons. The crew consists of skipper, mate, stewardess and part time cook, which are accommodated in separate 2 aft cabins.

Modern and simple B&R rigging type allow to have the large sail area and get the good performance in light and moderate winds. The powerful aluminium hull with fully protected skeg rudder and propeller, moderate draft and large volume of tanks, make this yacht as real long range comfort cruiser. General sailing area is Mediterranean sea in summer or the Caribbean area in winter, but distant points can also be visited as desired.

The concept of the yacht was originated by Alexander Morozov, the naval architecture and engineering by Olivier van Meer Design, the builder of the yacht is 360a3 Yachts S.L.

The project is in process, please see our news for update of subscribe to our newsletter on News or Contact page.

Features

fully enclosed pilothouse deck saloon for all weather sailing and inside steering

protected cockpit with hard top bimini roof

professionally built aluminium hull and deck with high quality painting

Fully skeg protected rudder and propeller

built-in keel box with lead ballast inside

B&R rigging with possible to twice increase the sail area downwind

reliable and economical modern engine with double remote control
